Parts list

I'm attempting to compile a parts list of replaceable parts as well as upgrade alternatives. Please post or PM and I will add to the list. Also, if how to's/tech notes are available for these, I will attempt to link the part numbers to that discussion.

Spark Plugs: - discussion - Bosch to NGK cross reference - Visual reference for testing

MFG# --------------- Stock#

BPR7HIX -----------NGK5944------------- NGK Iridium upgrade - discussion

BP7HS -------------------------------------- NGK stock replacement

PL7YC -------------------------------------- Champion stock replacement

W5BC ----------------7531---------------- Bosch stock replacement

W5BP ----------------7931---------------- Bosch stock replacement

Spark Plug Caps:

LB05EP ----------------------------------- NGK sock replacement

VB05 -------------------------------------- NGK stock replacement 120 degree bend - pdf

Coils:

Kitaco Super Coil ------------------------ Upgrade

CDI:

New Racing CDI ------------------------- Upgrade - discussion

Headlights:

H-4 60/55 watt ---------------------------- Upgraded Headlight(Halogen) - discussion

Air Filters:

R-1100 -------------------------------------- K&N Universal Air filter upgrade - discussion

Key replacement:

ILCO X186 --------------------------------- Suzuki replacement key

DA-24 -------------------------------------- Nissan replacement key - picture

Hillman SU-17 ----------------------------- General replacement

Oil: - discussion

Synthetic

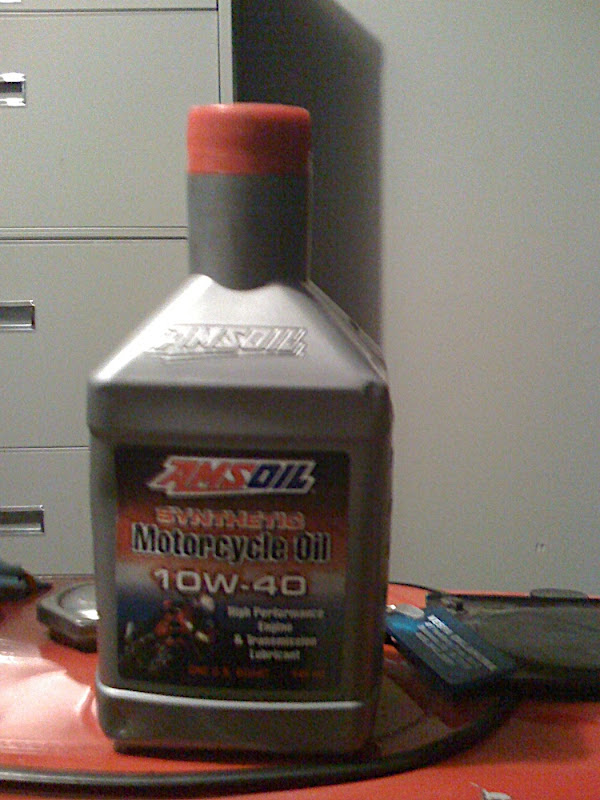

10W-40 ----------------------------------- Amsoil Fully Synthetic for Wet Clutches - picture

10w-40 ----------------------------------- Mobil 1 Racing 4T - info

10w-40 ----------------------------------- Castrol Power 1 Racing 4t - info

20w-50 ----------------------------------- Screamin' Eagle SYN3 (the Harley brand)

Dino

10w-40 ---------------------------------- Valvoline 4T - info

15w-40 --------------------------------- Castrol Power1 4T - info

Replacement Oil Plug (Longer than stock)

17mm long 10x1.25 pitch with a 1/8" washer.

Batteries

Generic battery number 12N9-4B-1 9Ah

Yuasa Yb9b

Parts Unlimited rcb-9b

Exide 12MX9-B

Please anybody feel free to add.

Last edited by rufuskeet on Fri May 22, 2009 7:11 pm; edited 20 times in total

Oh yeah...

Paz... the info you have provided to me & I am sure many others is a massive help...
a post with all the pertinent info would be a very beneficial offering.

I ordered a plug from DaveKnowsDeals... but didn't think to ask if he had the resistor cap thingy...
I am sending him an E after this to see if he does... ( I feel like Stevie Wonder here)

I am also wondering... if there is a cross reference chart out there to see if there is a Bosch spark plug alternative..
one of the 4 post ones?... I just figured if 1 is good, 2 or more has got to be better.......... ?

Thanks for all your help...
I hope I am able to contribute something useful soon

_________________
Happy Trails,

Cowboydoug

I moved to Utah for fly fishing and the big haired girls...
-the fly fishing has been very good to me...

Also, if anybody has any critiques or things that could be added to the list, please let me know.

Seth

How about key replacements? I am getting mine made today. From this forum and the Yahoo forum, the ones that consistently come up as good replacements are: ILCO X186, DA-24 (Nissan?), and Hillman SU-17.

I have not personally checked any of these out, but there are posts that report they work. I will let you know the results of my key search today.

_________________
gtb
2006 Black Chetak
baby moons, whitewalls
otherwise stock all the way

Keys and spark plug caps were updated.

Thanks to gbosslet for keys and rufusswan for the caps.

Seth

What about oil types, synthetic and dyno?

I use Amsoil 10W-40 Fully Synthetic for Wet Clutches. Get it at your local motorbike shop.

_________________
The "X" stands for ex-Chetak owner.

I added an oil category with amsoil and a few others from the oil discussion.

Awesome job on this thread rufus #2, by the way.

_________________
The "X" stands for ex-Chetak owner.

Thanks Matty, hopefully more people will help contribute and the list will continue to grow.

Funny thing is, I actually don't have a scooter, never have, but have one being delivered this week. I bought it off of JerseyBiker from this forum. Once that happens, I hope to contribute more when I actually know what I'm talking about.

Seth

How about some battery data Question

My OE battery is an Exide 12MX9-B aka 12v 9AH.

I was only able to find one replacement easily and that was at Batteries Plus. Theirs is a 9b (130 cca) I think and they quoted me $37.99 but I didn't buy one. Don't need it yet, just thinking ahead for next year since mine was made in 05 I wouldn't expect it to last much longer. I brought the levels back up to snuff with distilled water and added the drain tube that was missing. I'll just keep an eye on it and bring it in doors during the winter and cycle it on my trickle charger with the rest of my deep cycle batteries.

Anyone else know of some direct replacements?

_________________
Now firing. Inquire within.

Awesome idea! This has got to be a sticky!

oil: Screamin' Eagle synthetic 20W 50 (the Harley brand) -- for use with wet clutch

SC

_________________
'02 Chetak (90mpg - poor man's hybrid?)

Spark Plugs: - discussion - Bosch to NGK cross reference -

BPR7HIX -----NGK5944-------- NGK Iridium upgrade - discussion

BP7HS ----------------------- NGK stock replacement

PL7YC ---------------------- Champion stock replacement

W5BC --------7531--------------- Bosch stock replacement

W5BP ---------7931-------------- Bosch stock replacement

I inserted the stock numbers that will make it easier to ask for availability when calling your local parts store.
AutoZone doesn't carry the iridiums, ORiley 2-14 day special order... maybe. Advance pay in advance next day pick up ($6.99), NAPA in stock $9.19

I couldn't find a Bosch 4+ upgrade for either of the two listed plugs, and it was very frustrating since bosch doesn't seem to want to list their plugs on line by anything but application(yr,MK,Mod...)

Denso Listed a plug that cross referenced with the NGK5944 as plug # IWF22

So NAPA gets my $

I bought my iridium plugs (BPR7HIX) off of ebay. A seller that goes by the name of DaveknowsDeals sells them really cheap.

Longer oil plug (as per rufusswan)
17mm long 10x1.25 pitch with a 1/8" washer.

Thanks whoever sticky-ed this!

I'll do you one better. I used AMSOIL 4 Stroke SCOOTER oil... yes the actually sell a SCOOTER oil...

its probably the same stuff??

How did that Amsoil scooter oil work. I'd be afraid that it wasn't for wet clutch applications like ours.

	dirkhunt wrote:
	How did that Amsoil scooter oil work. I'd be afraid that it wasn't for wet clutch applications like ours.

PRODUCT DESCRIPTION
AMSOIL Formula 4-Stroke® 10W-40 Synthetic Scooter Oil (ASO) is formulated specifically to meet the special needs of today’s high-tech air- and water-cooled fourstroke motorized scooters, offering unsurpassed wear protection and friction reduction for longer equipment life and cooler operating temperatures. Its exceptional shear stability ensures consistent viscosity protection and provides additional protection for transmissions and gear boxes, while its friction modifier-free formulation ensures wet clutch compatibility and smooth clutch operation. A special anti-corrosion additive package provides long-term protection during periods of inactivity and storage.

Shear Stability
High engine rpms common to scooter applications increase shear, causing conventional lubricants to lose viscosity and reduce their ability to control wear, resulting in shorter engine life. The synthetic formulation of Formula 4-Stroke Synthetic Scooter Oil effectively resists shear, delivering consistent viscosity protection for unsurpassed wear protection and extended equipment life.

Thermal Stability
The operating temperatures of scooter engines fluctuate greatly, especially with air-cooled engines. Formula 4-Stroke Synthetic Scooter Oil resists breakdown at elevated temperatures, maintaining its protective viscosity for maximum wear control.

Transmission and Gear Box Compatibility
In many scooter applications, the engine and transmission and/or gear box share the same oil reservoir. Formula 4-Stroke Synthetic Scooter Oil is absolutely shear stable and will not thin out from mechanical activity, providing superior protection for transmissions and gear boxes.

Wet Clutch Compatibility
Some scooters utilize a frictional clutch to engage and disengage the engine from the drivetrain. In many cases, this clutch is immersed in the same oil used in the engine and transmission. Formula 4-Stroke Synthetic Scooter Oil contains no friction modifiers and is wet clutch compatible, offering smooth clutch operation and increased clutch life.

Rust and Corrosion Protection
Scooters are often subjected to extended periods of inactivity and storage, exposing the equipment to internal rust and corrosion. Formula 4-Stroke Synthetic Scooter Oil is formulated with a special anti-corrosion additive package designed to provide long-term protection during periods of inactivity and storage.

Applications and Recommendations
AMSOIL Formula 4-Stroke Synthetic Scooter Oil is recommended for use wherever SAE 10W-40 motor oil is specified in air- and watercooled four-stroke motorized scooter engines, transmissions and gear boxes that require the following:

API SG, SL/CF
JASO MA/MA2 (motorcycle wet clutch)
Engine manufacturers include, but are not limited to, Honda, Kawasaki, Suzuki, Yamaha, Vespa, Aprilia, Piaggio, Benelli, Vento, Kymco, Tank and TGB.

I had to know...sorry.

_________________
Thats a sweet bike.

H-Burg Hooligans.
Harrisburgs Toughest.

http://harrisburghooligans.freeforums.org/

No apologies,
That's the type of info I wanted but was too lazy to go get myself Very Happy

	dirkhunt wrote:
	No apologies, That's the type of info I wanted but was too lazy to go get myself

yeah motorcycle shop in december.
deader than a doorknob.
i have nothing better to do.

_________________
Thats a sweet bike.

H-Burg Hooligans.
Harrisburgs Toughest.

http://harrisburghooligans.freeforums.org/

i put the mobil1 10w40 motorcycle stuff in my scoot. it seems alot louder to me now. like...a camchain noise on a triumph. i assume its because its a lighter weight oil...just wondering if anyone else has experienced this with the mobil1?

_________________
Thats a sweet bike.

H-Burg Hooligans.
Harrisburgs Toughest.

http://harrisburghooligans.freeforums.org/

I wouldn't have anything to compare it to since I have only run Mobil 1 .

I do remember getting a power gain when i switched from the break in oil Mobil 1 though.

i def got a power boost...but when i switched out the break in oil i added my k&n and poc.
just wondering if the noise is a concern. My tech says not to worry about it. He said if it gets louder worry about it.
It hasnt gotten any louder.

_________________
Thats a sweet bike.

H-Burg Hooligans.
Harrisburgs Toughest.

http://harrisburghooligans.freeforums.org/

I wouldn't worry about it, it's good oil. They are all somewhat different in their viscosity agents, and will transmit sound differently too.

_________________
"The trick to thinking is the ability to be able to stop thinking." - actual wisdom found on the web !!
http://zenhuckfinn.wordpress.com

Rufus,

I am a fairly new member and have seen very positive contribution made by you on a consistent basis. Obviously you are very much involved in Chetak business and take great interest in understanding and sharing the technical issues. It is indeed a great work you are doing. I thought I let you know how much I appreciate reading your responses. I hope you do not loose interest and keep doing what you are doing. I will keep trying to make some contribution too consistent with my limited technical base.

I still have not been able to attach the pictures in my message. I reaed the thread but my limited computer skill level is playing its role. I tried to use PICASA and could not follow through am willing to try something else. Can you or some one provide detailed instruction for people like me by giving an actual example? The current BROWS link type approach would be great.

Thanks again your continued support to the Chetak forums.
